Rotary Wheel Industrial Desiccant Dehumidifier For Pharmaceutical Industrial 23.8kg / H

Hangzhou Fuda Dehumidification Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

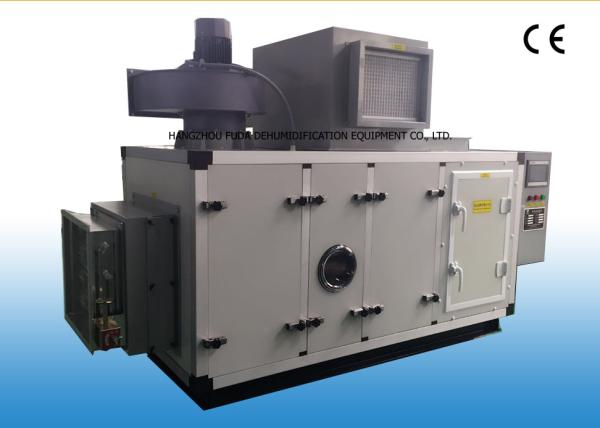

Rotary Wheel Industrial Desiccant Dehumidifier For Pharmaceutical Industrial 23.8kg / H

Place of Origin : Hangzhou, China

Brand Name : FUDA

Certification : CE, ISO9001

Model Number : ZCS-3000

MOQ : 1set

Packaging Details : Wooden Case

Delivery Time : 45days

Payment Terms : T/T, LC

Supply Ability : 10000set/Year

DesiccantRotor : Sweden Proflute

InstalledPower : 28.2kw

ProductName : Industrial Desiccant Dehumidifier

ProcessAirflow : 3000m³ /h

RatedCapacity : 23.8kg/h

DesiccantMaterial : Silica Gel

Contact Now


Rotary Wheel Industrial Desiccant Dehumididifier for Pharmaceutical Industry 23.8kg / h



Quick Details:

Style: wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: silica gel
Process Airflow: 3000m³ /h
Rated Capacity: 23.8kg/h
Dehumidifying Efficiency: High
Installed Power: 28.2kw
Voltage: 380V/3P/50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air humidity control


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

General Description:


ZCS-3000 Industrial Desiccant Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.


Competitive Advantage:

  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance


Specifications:

Main Parameters

Model

ZCS-3000

Process Airflow

3000 m3/h

Regeneration Airflow

100 m3/h

Rated Dehumidification Capacity

23.8 kg/h

Regeneration Power

24 kw

Power of Process Fan

3.0 kw

Power of Regeneration Fan

1.1 kw

Power of Driving Motor

0.1 kw

Installed Power

28.2 kw

Dimension

2550×100×1760 mm

Weight

450kgs

User Friendly Automatic Interface Control System:


Rotary Wheel Industrial Desiccant Dehumidifier For Pharmaceutical Industrial 23.8kg / H

Production Workflow Chart:

Rotary Wheel Industrial Desiccant Dehumidifier For Pharmaceutical Industrial 23.8kg / H

We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
