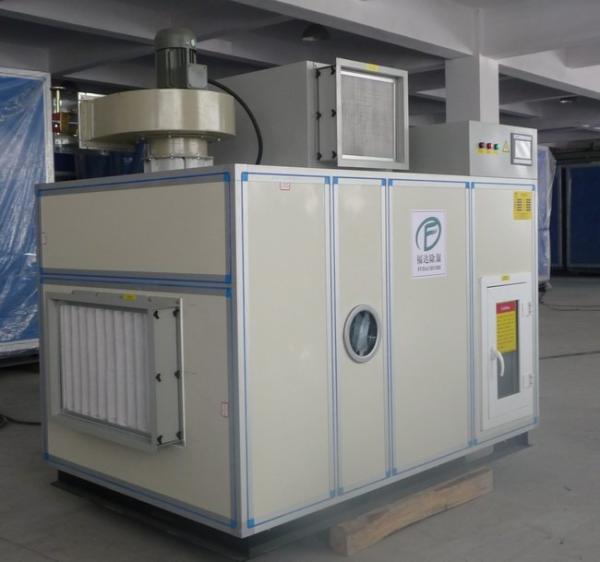

Pharmaceutical Industrial Desiccant Rotor Dehumidifier Rotary Wheel 7000m³/H

  • 1
  • 2
  • 3

Place of Origin : Hangzhou, China

Brand Name : FUDA

Certification : ISO9001:2008

Model Number : ZCS-7000

MOQ : 1set

Packaging Details : Wooden Case

Delivery Time : 45days

Payment Terms : T/T, LC

Supply Ability : 10000sets/Year

Desiccant Rotor : Sweden Proflute

Product Name : Industrial Air Dehumidifier

Rated Air Flow : 7000m³/h

Rated Capacity : 50kg/h

Desiccant Material : Silica Gel Wheel

Contact Now

Pharmaceutical Industrial Desiccant Rotor Dehumidifier Rotary Wheel 7000m³/h



Quick Details:

Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Process Airflow: 7000m³ /h
Rated Dehumidifying Capacity: 50kg/h
Dehumidification Efficiency: High
Installed Power: 9.1kw
Voltage: 380V/3 phase/50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air humidity control


Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



General Description:

ZCS-7000 Industrial Air Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.

Competitive Advantage:
  • Good dehumidifying capacity
  • Compact structure,
  • Stability and reliability,
  • Easy operation and maintenance



Specifications:

Main Parameters

Model

ZCS-7000

Process Airflow

7000 m3/h

Regeneration Airflow

2330 m3/h

Rated Dehumidification Capacity

50 kg/h

Reactivation Steam Consumption

100 kg/h

Power of Process Fan

7.5 kw

Power of Regeneration Fan

1.5 kw

Power of Driving Motor

0.1 kw

Installed Power

9.1 kw

Dimension

2475×1362×1950mm

Weight

850 kgs
