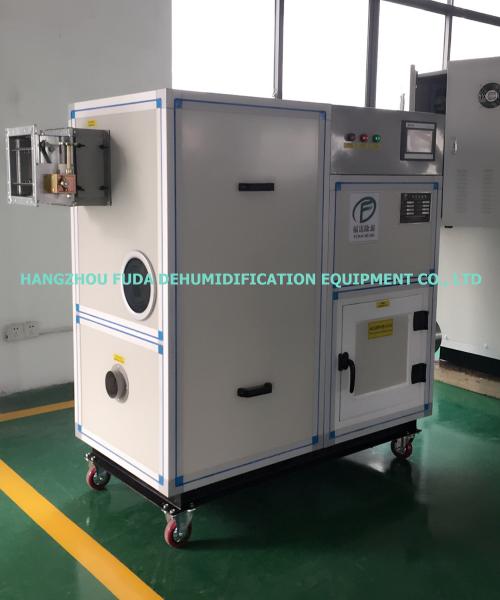

Movable Industrial Desiccant Air Dryer

  • 1
  • 2
  • 3

Brand Name : FUDA

Model Number : ZCS-1000

Certification : CE, ISO

Place of Origin : Hangzhou, China

MOQ : 1set

Payment Terms : T/T, LC

Supply Ability : 10000sets/Year

Delivery Time : 45days

Packaging Details : Wooden Case

Installed Power : 11.96kw

Product Name : Industrial Desiccant Air Dryer

Rated Air Flow : 1000m³/h

Rated Capacity : 7.2kg/h

Desiccant Rotor : Sweden Proflute

Desiccant Material : Silica Gel Wheel

Contact Now


Fully Automatic Movable Industrial Desiccant Air Dryer Dehumidifier 1000m3/h


Quick Detail:

Feature: Movable with castors

Function: Air dehumidifying by rotor
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica gel wheel
Rated Process Airflow: 1000m³ /h
Rated Dehumidification Capacity: 7.2kg/h
Dehumidifier Quality: High
Installed Power: 11.96kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving

Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Competitive Advantage:

  • Movable with castors
  • Compact structure,
  • Stability and reliability,
  • Fully automatic


General Description:

ZCS-1000 Desiccant Air Dryer removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.


Specifications:

Main Parameters

Model

ZCS-1000

Process Airflow

1000 m3/h

Regeneration Airflow

350 m3/h

Rated Dehumidification Capacity

7.2 kg/h

Regeneration Power

10.8 kw

Power of Process Fan

0.75 kw

Power of Regeneration Fan

0.37 kw

Power of Driving Motor

0.04 kw

Installed Power

11.96 kw

Dimension

1650×860×1340 mm

Weight

250 kgs




















Movable Industrial Desiccant Air Dryer
