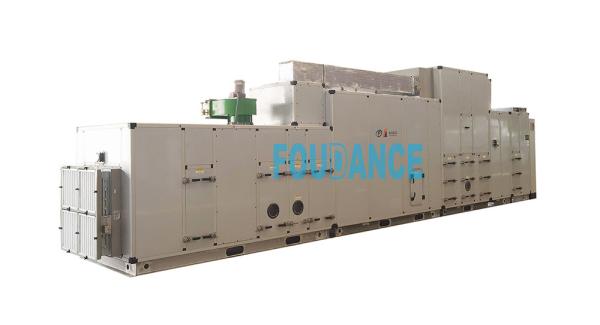

ZCH-30000 Super Low Humidity Lithium Battery Industry Desiccant Dehumidifier DP<-40℃

Name: ZCH30000 Super Low Humidity Lithium Battery Industry Desiccant Dehumidifier DPlt40
Brand: FOUDANCE
Price: 1 USD

China ZCH-30000 Super Low Humidity Lithium Battery Industry Desiccant Dehumidifier DP<-40℃ wholesale

Brand Name : FOUDANCE

Model Number : ZCH-30000

Certification : CE, ISO

Place of Origin : Hangzhou, China

MOQ : 1set

Payment Terms : T/T, LC

Supply Ability : 10000set/Year

Delivery Time : 60days

Packaging Details : Wooden Case

Desiccant Rotor : Import

Installed Power : 34.1kw

Product Name : Desiccant Dehumidifier

Supply Airflow : 30000m³ /h

Dry Air : T<25℃ DP<-40℃

Contact Now

ZCH-30000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier DP<-40℃

The basic principle of operation involves passing humid air over a rotating wheel or rotor that is coated with a desiccant material, such as silica gel or molecular sieves. The desiccant material has a high affinity for moisture and absorbs it from the air, effectively reducing the humidity level.

Specifications:

Model	ZCH—30000
Requirements	T<25±2℃,TL<-40℃
Total Process Airflow(m³/h)	33000
Supply Airflow(m³/h)	30000
Parameter of Supply Air	T=14℃, TL≤-65℃
Fresh Airflow(m³/h)	7500
Return Airflow(m³/h)	25500
Rotor Process Airflow(m³/h)	First Rotor	Second Rotor
	7500	30000
Rotor Reactivation Airflow(m³/h)	3000	3000
Reactivation Temperature	120±10℃	135-140℃
Reactivation Steam Consumption (kg/h)	90	128
Driving Motor Power(kw)	0.1	0.3
Reactivation Fan Power(kw)	1.5
First Fan Power(kw)	2.2
Supply Blower Power(kw)	30
Cooling Load(kw)	375.6
Chilled Water Consumption(T≤7℃)( T/h)	64.6
Power Supply	380V/3P/50Hz
Installed Power(kw)	34.1
ESP(External Static Pressure) (Pa)	≥800

Competitive Advantage:

Import silica gel & molecular sieve wheel
A totally self contained unit
Siemens PLC + HMI automatic control system
Aluminum alloy frame, broken-cold bridge
Body modularization design, foam injected double wall casing
Stainless steel drain pan
Electric or steam heating or convert type can be available.
All operation parameters can be on-line observed, ensuring the operation reliability
High temperature safety thermostat cutout
Electrical interlocking of fan motors, heaters and rotor drive

Application:

ZCH-30000 Super Low Humidity Lithium Battery Industry Desiccant Dehumidifier DP<-40℃

Battery Dry Rooms

The development and manufacturing of lithium batteries needs to take place in ultra low humidity dry rooms, regardless of whether it is a small R&D lab environment or a large scale production facility.

Most manufacturers need the dry rooms to be maintained at a dew point of -40°C, and the industry standard could be even lower in the years to come. We have delivered dry rooms capable of -60°C, and have the best technology for the potential demands of the future.

Expertise in every application

Every different kind of lithium battery requires a different manufacturing environment. We provide market-leading technology for the entire range of applications, including:

Consumer electronics
Hybrid and electric vehicles
Electric grid storage
Forklifts
Telecoms
Medical devices
Power tools
Electric bikes and wheelchairs

User Friendly Automatic Interface Control System:

ZCH-30000 Super Low Humidity Lithium Battery Industry Desiccant Dehumidifier DP<-40℃

We can provide the technical design for dehumidification according to your requirements.
